Product Overview

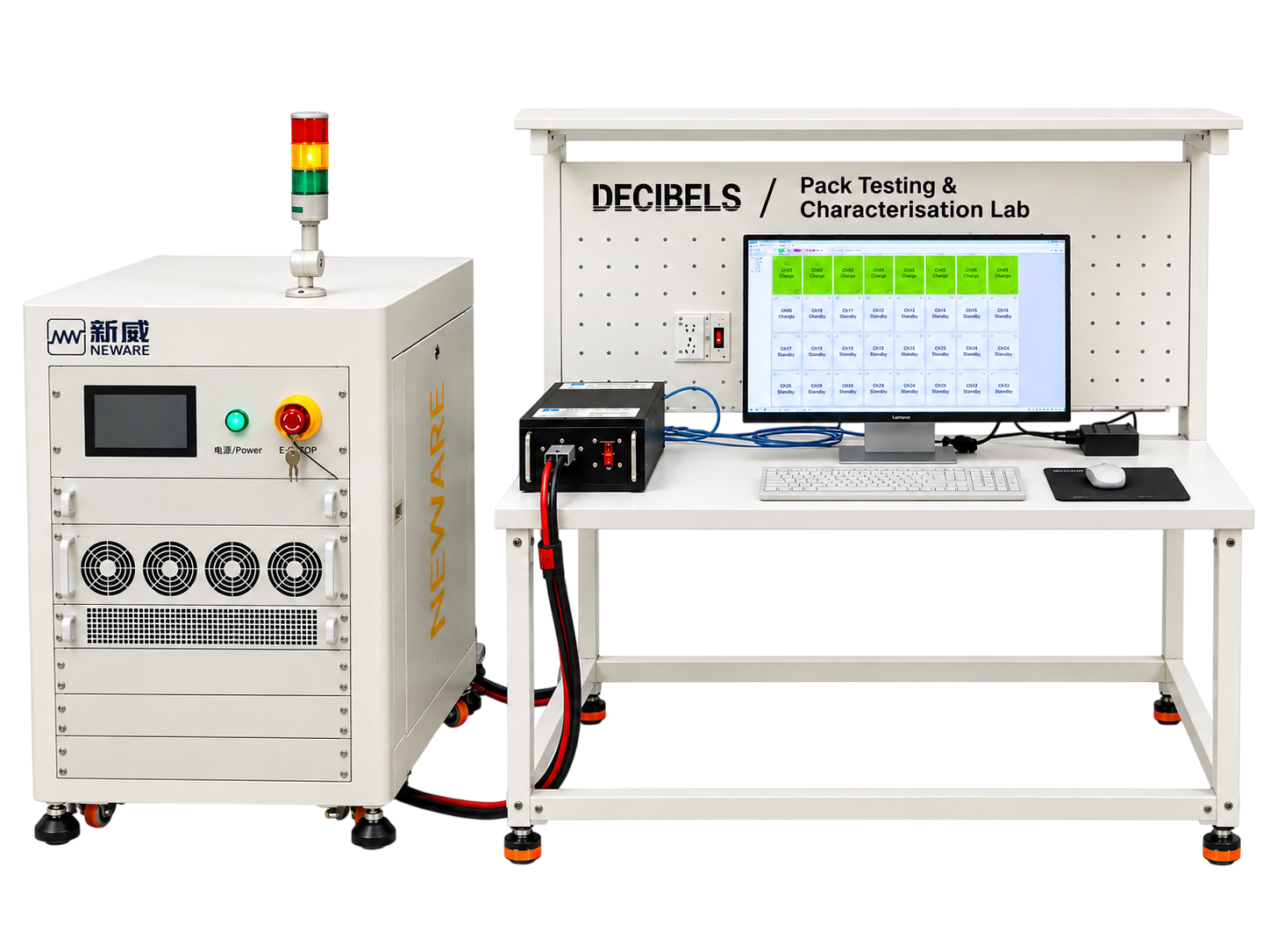

The Battery Pack Testing & Characterization Lab from Decibels Lab is designed for industry-grade validation of battery packs, enabling evaluation of performance, safety, and reliability under real-world operating conditions. The platform supports different battery pack configurations and chemistries while allowing testing with application-specific load profiles.

It enables automated charge-discharge cycling, capacity measurement, cycle life testing, and aging analysis to study degradation and capacity fade over time. Realistic usage patterns can be replicated to generate lifecycle data and support performance benchmarking.

The platform provides a reliable solution for battery pack validation and data-driven performance analysis, supporting product development and quality assurance by helping teams identify performance trends and validate design targets.


The setup enables engineers and researchers to:

  • Perform charge and discharge testing on battery packs
  • Measure capacity, voltage, current, time, and energy performance
  • Conduct long-term aging and cycle life studies
  • Analyze capacity fade and power degradation trends
  • Evaluate pack performance under different load profiles
  • Generate data for validation, modelling, and optimization
  • Configure flexible test profiles using CC, CV, CC-CV, CP, and pulse testing
  • Automate testing by loading pre-planned test profiles


Research & Validation Outcomes

Using this platform, users can:

  • Understand battery pack behaviour under real-world operating conditions
  • Characterise battery pack performance across different load profiles
  • Evaluate charge, discharge, capacity, and energy performance
  • Study battery degradation and capacity fade over extended cycling
  • Analyse power degradation and lifecycle performance trends
  • Generate experimental data for battery modelling and validation
  • Compare battery pack performance across different configurations and chemistries
  • Support battery pack design verification and optimisation
  • Develop data-driven insights for product development and quality assurance


The Platform Integrates

  • Bi-directional Supply Unit
  • Power Supply & Control Modules
  • Pack Interface & Connectors
  • Data Acquisition System
  • Test Control Software & GUI
  • Safety & Protection System

Product Specifications


Parameter Specification
Product Type Pack Testing & Characterisation Lab – Research/Industry
Operating Voltage Range 0–60 V
Maximum Current Up to 100 A
Supply System Bi-directional
Test Modes CC, CV, CC-CV, CP & Pulse
Testing Profiles Automated / Pre-planned Test Profiles
Pack Compatibility Various chemistries and series-parallel configurations
Data Acquisition Real-time
Testing Capabilities Charge, discharge, capacity, aging & cycle life testing
Data Analysis Performance, degradation & lifecycle analysis
Control Test Control Software & GUI
Safety Safety & Protection System

Key Experiments You Can Perform

With this test vehicle, users can explore

  • Battery Pack Charge & Discharge Testing

    Evaluate battery pack behaviour during controlled charging and discharging.

  • Capacity & Energy Measurement

    Measure voltage, current, capacity, time, and energy performance.

  • Cycle Life Testing

    Conduct repeated charge-discharge cycles to evaluate battery lifecycle behaviour.

  • Battery Aging & Degradation Analysis

    Study capacity fade and power degradation over extended operation.

  • Load Profile Performance Testing

    Evaluate battery pack performance under different application-specific load profiles.

  • Automated Test Profile Validation

    Configure and execute pre-planned CC, CV, CC-CV, CP and pulse test profiles.
