Product Overview

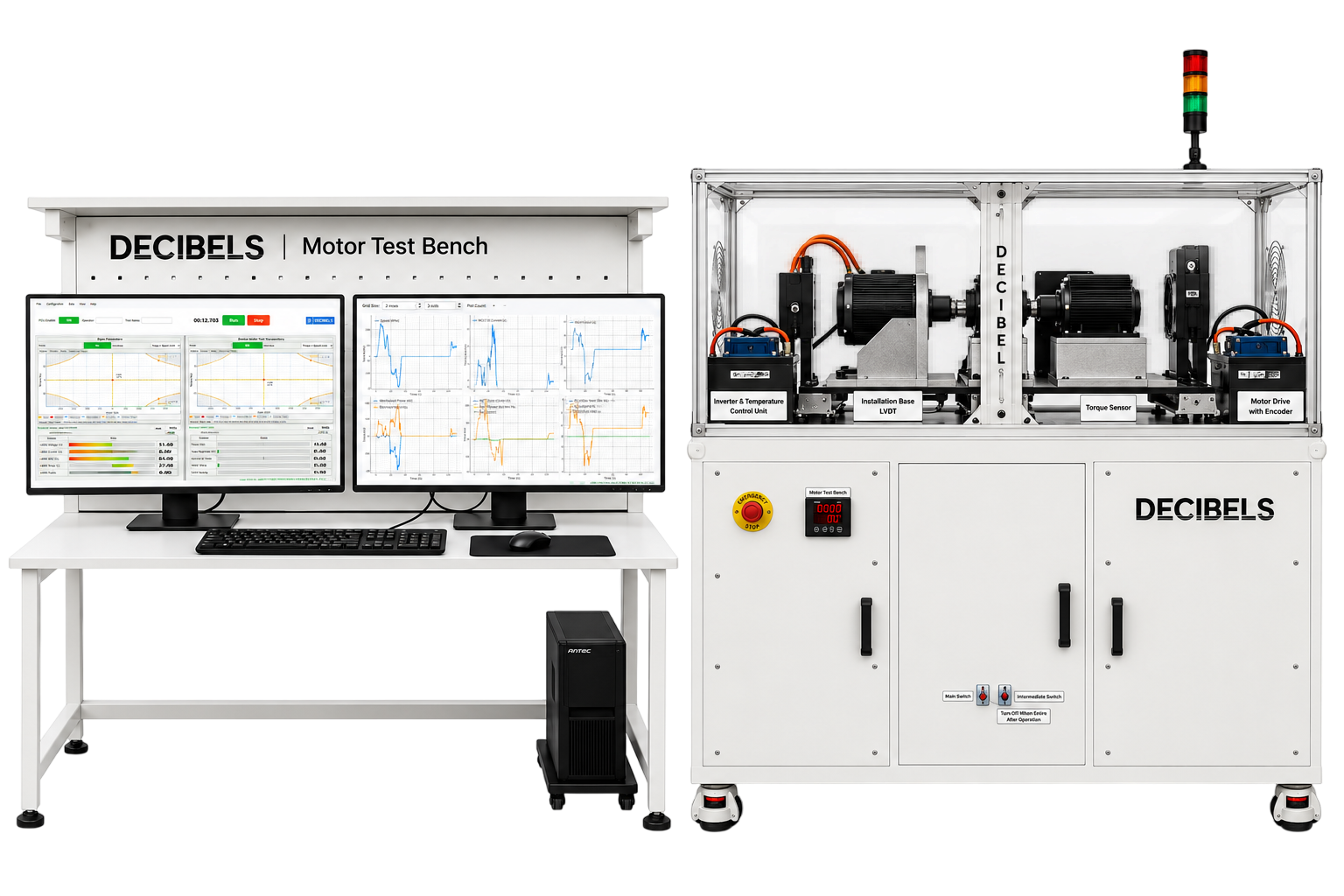

Decibels Lab offers a comprehensive range of Motor Test Benches for Electric Vehicle R&D, built to evaluate performance, efficiency, thermal behavior, and dynamic response under various load conditions.

These benches are designed for academic institutions, research centers, and EV manufacturers looking to assess motor control strategies, torque-speed curves, and efficiency maps in real-world scenarios.

Product Variants & Specifications


Specification Rope Break Load Dynamometer 4 Quadrant Load Dynamometer
Product ID DB-MTB-RBD-01 DB-MTB-4Q-01
Load Type Rope Break Dynamometer Regenerative Load Dynamometer
Absorber Power – 4 kW
Max Torque – 50 Nm
Max Load 30 Kg –
Max RPM
2500
2500
Measurements Motor Torque, Motor Speed, Motor Power, Motor Efficiency Motor Torque, Motor Speed, Motor Power
Motor Type (Under Test) BLDC Motor BLDC Motor
Motor Power (Under Test) 1 kW 1 kW
Controller Power Supply 48V DC / 2100 W 48V DC / 2100 W
Matched BLDC Controller 48V 48V
Data Logging Parameters (CAN-based) Motor Current, Motor Temperature, Motor RPM, Motor Input Power, Motor Controller Voltage, Throttle %, Motor Controller Temperature, Driving Mode, Fault Conditions Same as left
Test Software & DAQ – Windows-based PC with Software & Data Acquisition System
Optional Modules – Power Analyzer
Supply Consists Of Test equipment, All-in-one PC, Custom Table, Diagnostic/Comm. Cables Test equipment, All-in-one PC, Custom Table, Diagnostic/Comm. Cables
Online Course Access 1 Year Validity – Equipment Software Functionality & Working 1 Year Validity – Equipment Software Functionality & Working

Experiments & Applications

With this test vehicle, users can explore

  • Torque-Speed Mapping

    Analyze motor performance across a wide operating range.

  • Load Simulation

    Simulate real driving conditions using mechanical/electrical loading.

  • Controller Algorithm Testing

    Validate motor control strategies with 4Q setup.

  • Thermal Response Studies

    Observe heating behavior under sustained load.

  • Efficiency Evaluation

    Generate efficiency curves and operating zones.

  • Academic Research & Training

    Ideal for labs focused on EV drive systems.
