Product Overview

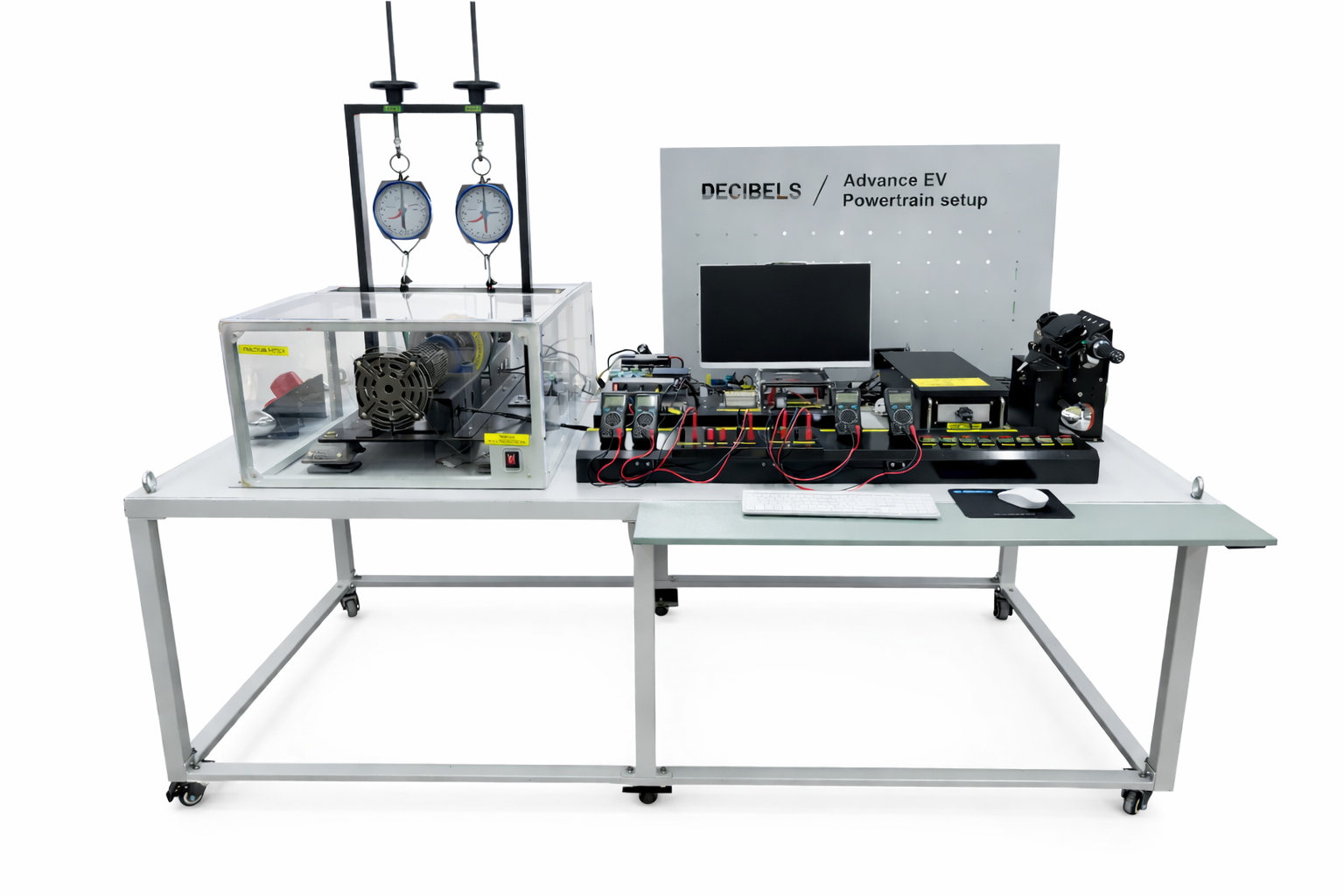

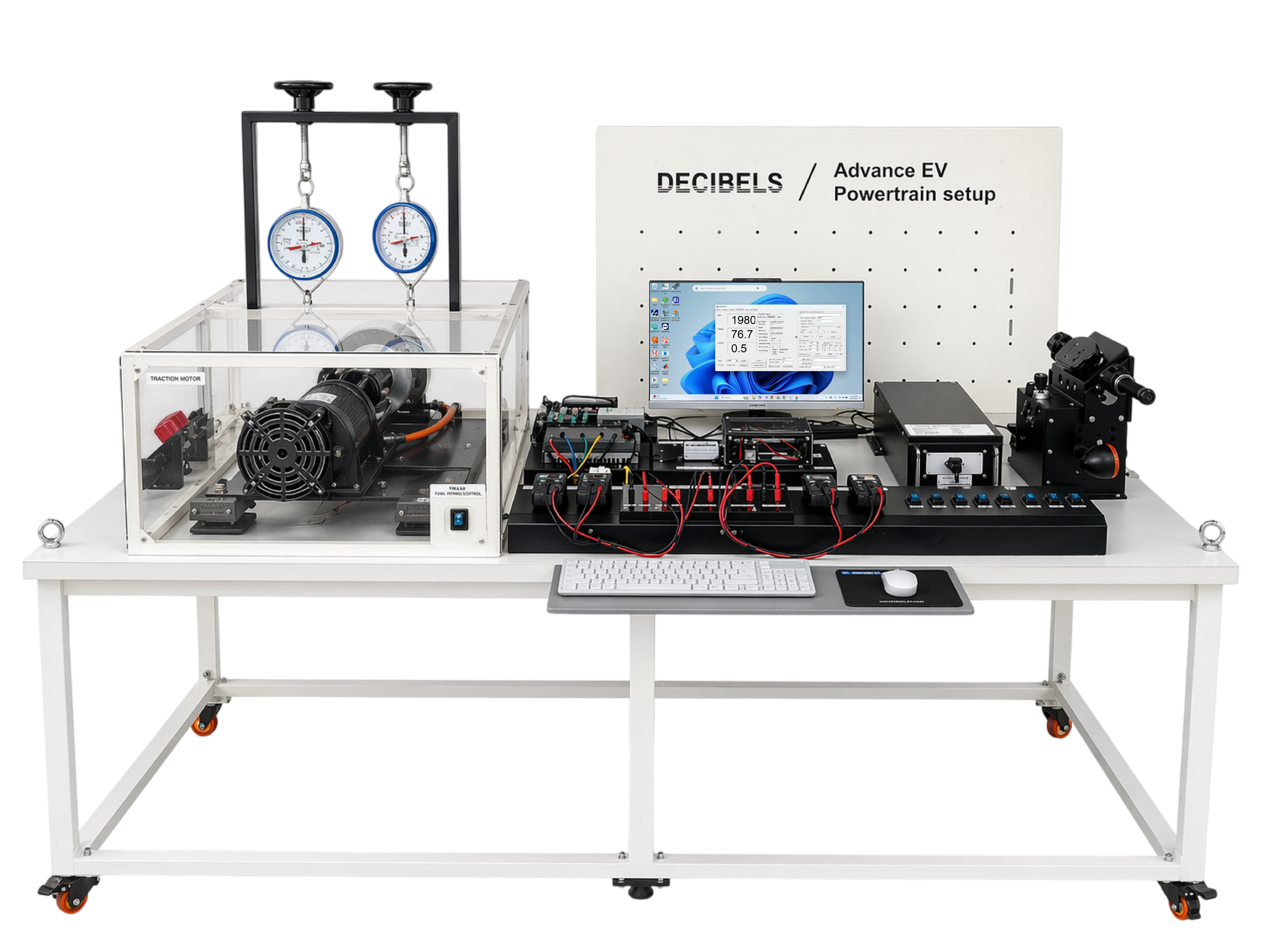

The Advance Electric Vehicle Powertrain Bench by Decibels Lab is an industrial-grade learning platform that integrates key EV subsystems -  motor, motor controller, battery, battery management system, EV charger, Motor loading, regenerative systems, pre-charging systems, diagnostics & DC-DC converter - into a single safe and modular unit.

This setup can be described as a ‘vehicle-on-bench’ system featuring actual vehicle-grade components and diagnostic interfaces. It enables learners to configure the Battery Management System (BMS), understand BMS software functions through a dedicated GUI, and explore motor controller software configuration. Users can test and analyse the impact of various BMS and motor controller parameters, perform basic motoring & regeneration characterisation, and understand pre-charge circuit operation along with relevant calculations. The system also facilitates fault diagnostics and system-level interaction analysis. It serves as a vital laboratory solution for academic courses and industry-focused training programs.



Product Variants & Specifications


Specification Details
Product ID DB-EV-PWB-01
Type Advanced Electric Vehicle Powertrain Bench
Functional Components 1. 48V Mid-drive Motor
2. 48V Programmable Motor Controller + Software (CAN-Based)
3. Variable Motor Load
4. 48V Smart BMS + Software
5. 48V Lithium-ion Battery Pack
6. 48V Lithium-ion Charger
7. Instrument Cluster (HMI)
8. 48V to 12V DC-DC Converter
9. Auxiliary Systems: Headlight, Brake Light, Indicators, Horn
10. Handlebar Switches (Park/Drive), Mode Control Switches (1/2/3), Key Switch
Diagnostic Components 1. Fault-Inducing Board (6+ Fault Scenarios)
2. Diagnosis Board
3. Multimeters
Communication CAN-based Motor Controller & BMS
Supply Includes 1. Test Equipment
2. All-in-One PC
3. Custom Table
4. Diagnostic & Communication Cables
Training Access Online Course Access (1-Year Validity): Equipment Software Functionality & Working
Application Hands-on Training, Troubleshooting, and Functional Demonstration of EV Powertrain Systems
Ideal For Engineering Colleges, Automotive R&D Labs, Technical Training Institutes

Key Experiments You Can Perform

This platform enables rich experimental learning

  • Motor-Inverter Testing

    Evaluate motor performance, torque-speed characteristics, and drive efficiency.

  • Energy Flow Analysis

    Visualize and optimize energy usage across drivetrain components.

  • Regenerative Braking

    Simulate braking energy recovery with programmable load conditions.

  • BMS-Controller Communication

    Study CAN-based data exchange between subsystems.

  • Fault Simulation & Diagnostics

    Inject real-world issues to teach fault-finding and maintenance.

  • Advanced Data Logging

    Analyze system parameters using graphical software tools.

  • Skill Development Training

    Perfect for diploma, UG, PG, and industrial training in EV technology.
