Product Overview

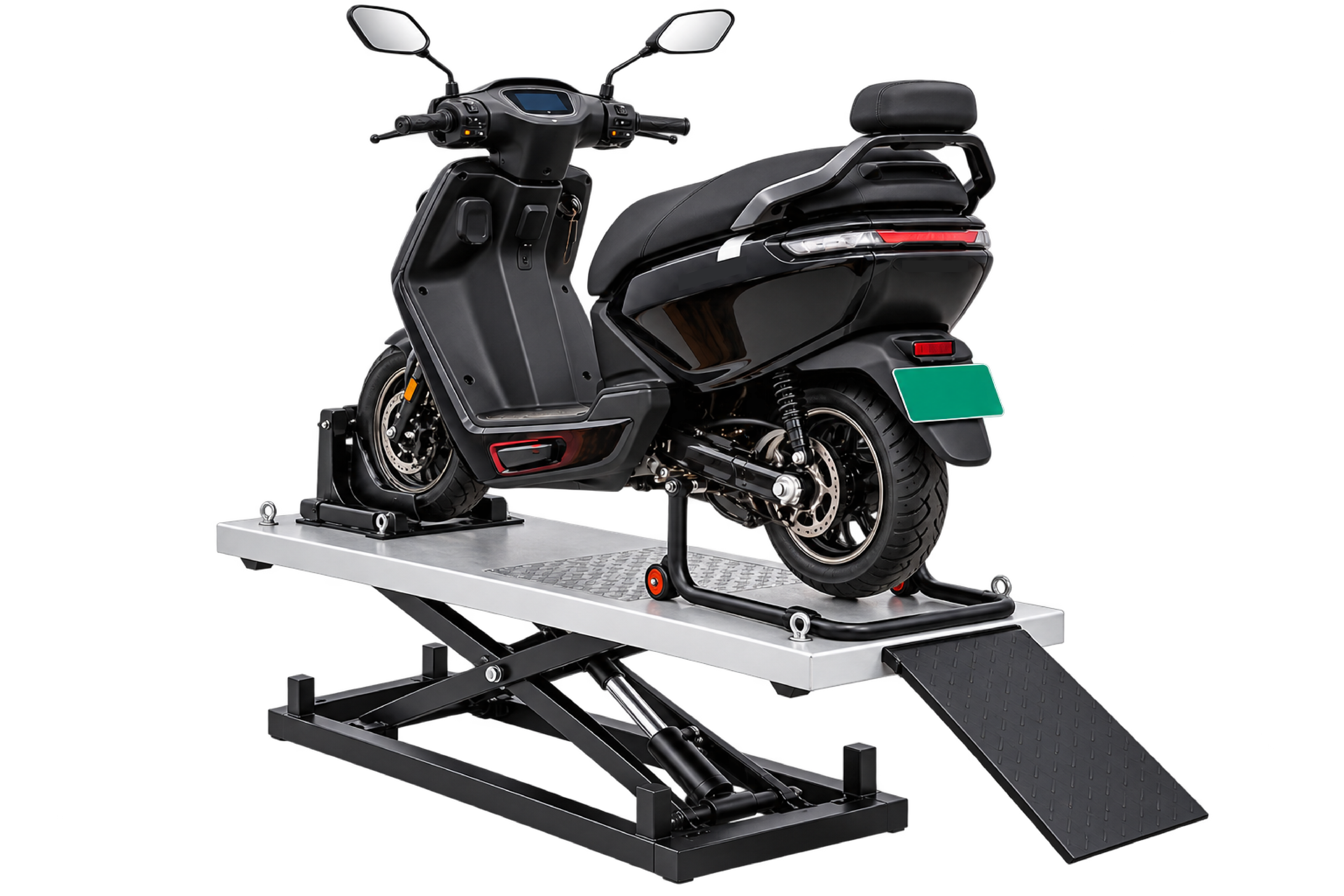

Build real-world skills on electric two-wheeler systems. Our service lab gives you hands-on access to the core components of modern e-scooters and e-motorcycles, from the battery pack and BLDC motor to the controller, charger, and wiring harness. Practice diagnosis, fault finding, and routine maintenance on the same architecture used in today’s electric two-wheelers. Whether you are training service technicians, teaching automotive students, or upskilling workshop staff, this lab builds the confidence to work on EVs safely and effectively.


Product Specifications


Parameter

Specification

Vehicle category

Electric two-wheeler (scooter / motorcycle platform)

Battery type

Lithium-ion (LFP or NMC)

Battery voltage

48 V

Battery capacity

2 kWh to 7 kWh

BMS features

Cell balancing, over-charge, over-discharge, over-temperature, short-circuit protection

Motor type

Brushless DC (BLDC) hub motor

Rated motor power

1.5 kW to 3 kW

Peak torque

Up to 120 Nm

Motor controller

Sine-wave / FOC controller with throttle and brake inputs

On-board charger

48 V to 72 V, 1 kW to 2 kW

Display / instrument cluster

Digital display with speed, SoC, and fault codes

Diagnostic interface

CAN bus, OBD-style port

Braking system

Regenerative and mechanical disc brake

Lighting

LED headlamp, tail lamp, indicators

Operating temperature

0 °C to +60 °C

Safety features

Key ignition, side-stand cut-off, fuse protection, emergency cut-off switch

Key Experiments You Can Perform
