Product Overview

The Electric Test Vehicle by Decibels Lab is a hands-on learning and validation platform designed to bridge theory with real-world EV behavior.

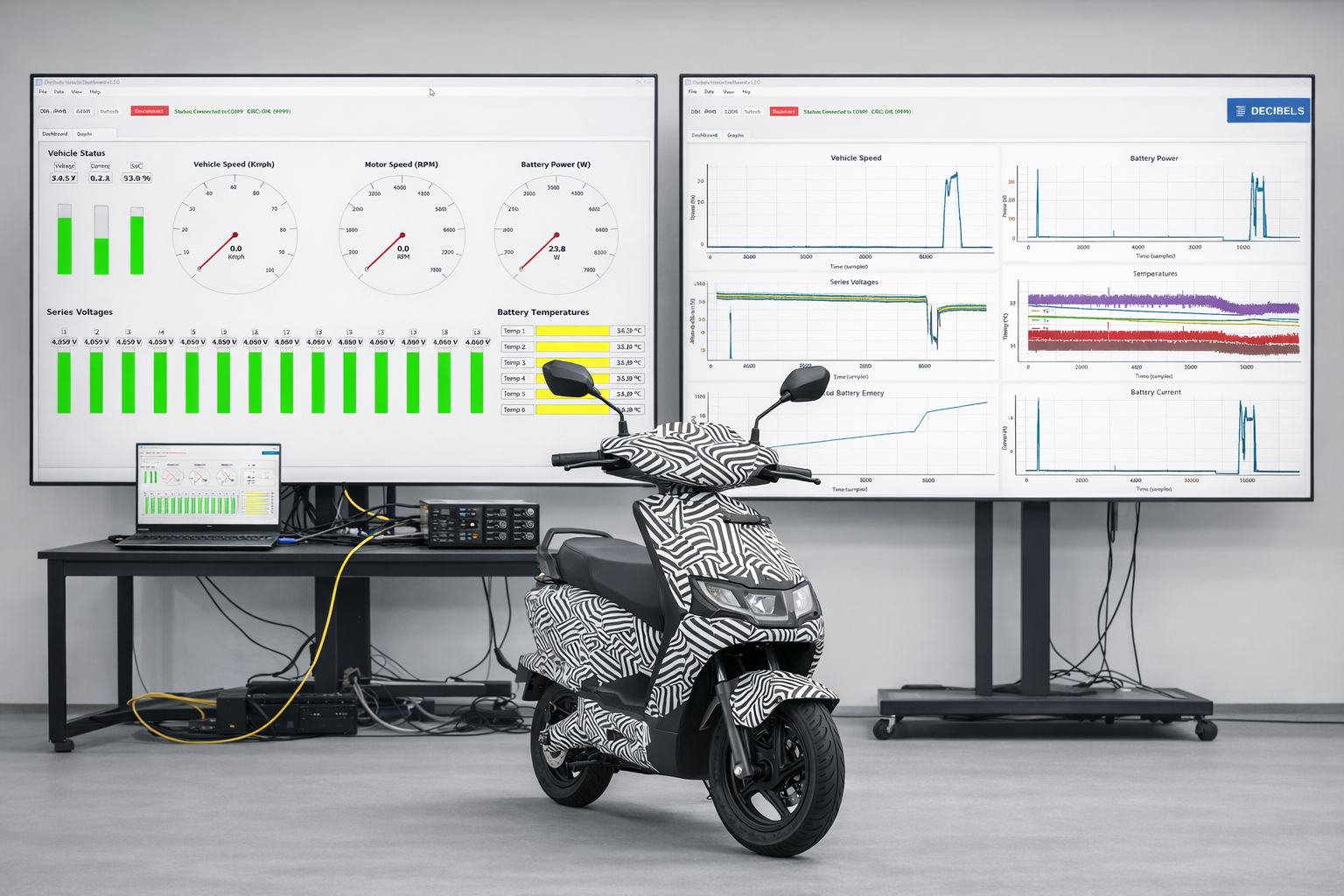

It enables users to study dynamic interactions between battery voltage, current draw, speed, and energy consumption under real driving conditions. Integrated with a proprietary CAN-based data logger and intuitive GUI, the system provides real-time visualization of critical parameters.

Learners can design and execute custom drive cycles, analyze performance trends, and validate simulation models against actual data. This platform empowers engineers, students, and researchers to develop, test, and optimize electric powertrain systems with practical insights.

Product Specifications


Specification Details
Product ID DB-EVTV-2W
Vehicle Type 2-Wheeler Electric Test Vehicle
Top Speed 80 km/h
Range 60–80 km
Vehicle Weight 135 kg
Payload Capacity 140 kg
Battery Pack 2.7 kWh, 48V Li-ion
Motor Type PMSM Motor
Motor Power 3 kW
Vehicle Torque >100 Nm
Speed Modes 3-speed modes
Charger Specs 48V, 10A Portable Charger
Thermal Management Air-cooled Motor & Battery
Data Acquisition CAN Data Logger
GUI software Windows PC based GUI software
Supply Includes Test Vehicle, CAN Data Logger, GUI software, Li-ion Charger, and User Manual
Optional Customers can buy a dedicated PC & table from Decibels Lab.


Experiments & Applications

With this test vehicle, users can explore

  • Real-Time Vehicle Performance Monitoring

    Collect data while driving and analyze system response.

  • Battery Testing

    Evaluate thermal behavior, efficiency, and state-of-charge trends.

  • System Optimization

    Identify losses, optimize energy usage, and improve performance.

  • Hands-On Learning

    Enable students to visualize how EVs function in real-world environments.

  • Green Mobility Research

    Support innovation in sustainable transportation technologies.

  • Use data for Digital twins

    Use the test data for validation of the Vehicle, battery and Motor digital twins
